xROVER REHA is a multifunctional medical stroller . Thanks to its design, it allows to transport people with limited mobility and provides them maximum safety and comfort. With the xRover stroller you can safely go hiking, make a trip, engage together in sport activities such as jogging, in-line skating or biking.

xROVER REHA is a certified medical stroller. Its design and construction differs from standard wheelchair. It is very light and very easy to operate even during transport of adults over 120 kg. It is equipped with many features that make it ideal, not only for simple driving in the city, but also for trekking and cycling , or even in the snow. Available in three models suitable from persons with limited mobility from childhood to adult.

The SMALL All-in-One model is suited to younger children aged between 1 to 7 years (max height 4’0) and has all the safety and support accessories you’ll need to keep your child safe, secure and optimally positioned when out and about.  Maximum passenger weight in the SMALL size is 70kg and height of 4’0″ (122cm), around 7 years old approx.

xROVER REHA is safe, comfortable and practical

Description

The fully equipped xRover REHA S All in One model is a medical stroller/buggy designed with comfort and safety in mind. Ideal travel solution for all terrains and activities including jogging, cycling and skiing.  Available in 3 convenient sizes, the X-Rover has an option to suit everyone, whether your a young child, active teen or adult wishing to pursue an outdoor life in style with family and friends A wide range of accessories also available including Beach Set to allow easy access to sandy beaches.

Techinical Specification

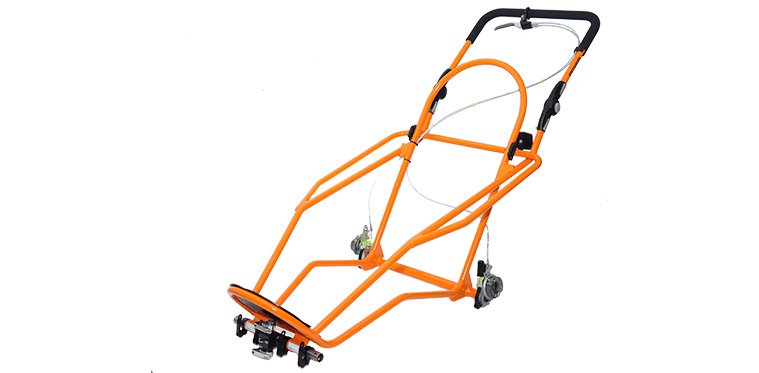

Frame weight:             S – 3,6 kg

Frame material:         aluminium alloys EN AW 6060, 6061, 6082

Curb weight:               depending on installed components and equipment (example: size “S” + 6”  front wheel + hood – 13.4 kg)

Wheel gauge (track width):           ca. 76 cm (guaranteed passage through 80cm door frame)

Wheel-base (rear axle – cross tube of front axle):           S  – 645 mm

Load weight:      S – up 44 kg/ up to 120 cm (tested for 70 kg)

Rear wheels:       20″ with integrated 70mm drum brakes

Wheel material:    aluminium centre and rim, steel wire spokes, plastic

Rear wheel tyre:              20×1,75 (47-406)

Rear wheel tyre inflation pressure:            3,1-4,2 bar, car tyre valve. Max. pressure in one tyre 4.2 bar

Front wheel 1:   14″

Wheel material:     aluminium centre and rim, steel wire spokes, plastic

Front wheel tyre:              14×1,75 (47-254)

Front wheel inflation pressure 1: 2,8 bar, car tyre valve. The max. pressure in one tyre 2.8 bar!

Front wheel fork 1:          fixed around vertical axis – suitable for off-road, jogging, inline skating and for higher speeds

Fork material 1:                aluminium alloy EN AW 2017

Front wheel 2:                   6″

Wheel material:       aluminium centre

Front wheel tyre 2:     full rubber (not inflated)

Front wheel fork 2: rotating around vertical axis – suitable as a baby buggy on hard surfaces and lower speeds

Fork material 2:     aluminium alloy, glass-filled plastic

Other important properties:

  • The front and rear frame arches protect the transported person’s head and body in case the stroller/baby buggy is overturned/overthrown;
  • The rear axle wheel camber by 10° ensures extreme stability against a side overturn of the stroller/baby buggy;
  • Safety belts with five-point safety buckles;
  • To achieve the maximum service life, all fastening materials are made of stainless steel A2
  • An installed and integrated bag for accessories and personal items;
  • Possibility to modify the handbrake from the right to left version.

Configuration

Contains

  • monolithic alu construction
  • rear 20″ wheels with drum brakes and park lock (felly black or wire)
  • front wheel (spoke or felly) 14″ with fork
  • swivel front wheel 6″ with alu fork
  • draft rod behind the wheel with complete accessories and fender
  • fixation insert
  • canopy
  • rear bag
  • 5 points safety belt
  • mosquito net
  • windstopper,
  • raincoat
  • retaining belt
  • wheel bag
  • cyclo-set (incl Towing bar with complete accessories and fender)
  • bum bag or hand bag
  • plastic handlebar joint

Accessories

An extensive range of accessories are available for the xRover Reha All in One S.  Please ask our product specialist for further information.

X Rover Unversal Beach Set

BEACH set for REHA xRover – absolutely new on the market!

Safety, reliability and functionality are the most important factors when transporting people. The entire BEACH set was therefore independently tested in laboratory conditions at -5 ° C to + 60 ° C, and in real summer conditions up to + 90 ° C.

All components are corrosion resistant.  All tyres are made of high impact and abrasion resistant plastic. Wheel forks and axles are made of high-quality salt-water resistant steel.  Low tyre pressure ensure not only easy terrain but also comfortable seating.  Portable bag is made of washable and non-absorbent material for safe transport of the entire BEACH set.

BEACH set includes two rear wheels with axles, front wheel with fork as well as carrying bag.  All wheels are assembled in few minutes in the same way as regular xRover wheel.

Fits to all sizes and version of XRovers
