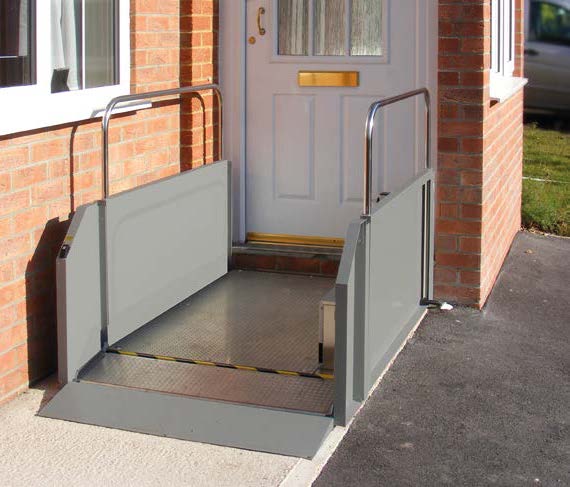

Domestic Interior or Exterior Step Lift for Disabled and Wheelchair Access

When wheelchair access is obstructed by steps, a ramp is not always a feasible option due to lack of space or you may not have enough length to achieve the required gradient. If you are looking for a practical and cost efficient option, a wheelchair step lifts can provide you with exactly what you need. Safe, reliable and easy to use, the Terry Step Lift – TSL 500 travels travel up to 500 mm, allowing independent access into and out of your home.

Consisting of a self contained unit, the TSL 500 is suitable for mounting on a flate 100mm concrete base and are quick to install, requiring minimal alterations. They can be supplied with bridging steps to ensure easy access for both disabled and pedestrian users. An upper level gate protects the landing when bridging steps are not provided.



Description

The Terry Step Lift – TSL 500 offers an easy solution for wheelchair access to and from a domestic property including access to the garden. The lift is versatile and flexible and our experienced engineers can usually install a TSL in less than a day.





Specification

  • Application range: can be sited internally or externally for wheelchair users only
  • Maximum safe working load: 250 kg
  • Closed height: 75 mm
  • Maximum height served: 500 mm
  • Internal Platform width: 800mm
  • Power supply electrical requirements: 220 / 240V~50 / 60 Hz-13 A single phase
  • Low voltage control system: 24V DC
  • Operating temperature range: -10 degrees C to 40 degrees C
  • Safety: automatic wheelchair arrestor mechanism and full battery back-up. Constant pressure controls
  • Drive: hydraulic scissor mechanism



N.B. Maximum load, travel and dimensions may alter subject to lift specification. This would be determined by a survey.

The TSL step lifts provide for wheelchair access only. However if you should require a lift to carry a wheelchair and an attendant or for standing use only, the Terry Melody 1 and Terry Melody 3  Lifts are designed for this purpose.

Options

  • Handrails
  • Single step bridging
  • Remote control enabler
  • Remote up/down control
  • Upper gate and interlock
  • Upper gate interlock kit
