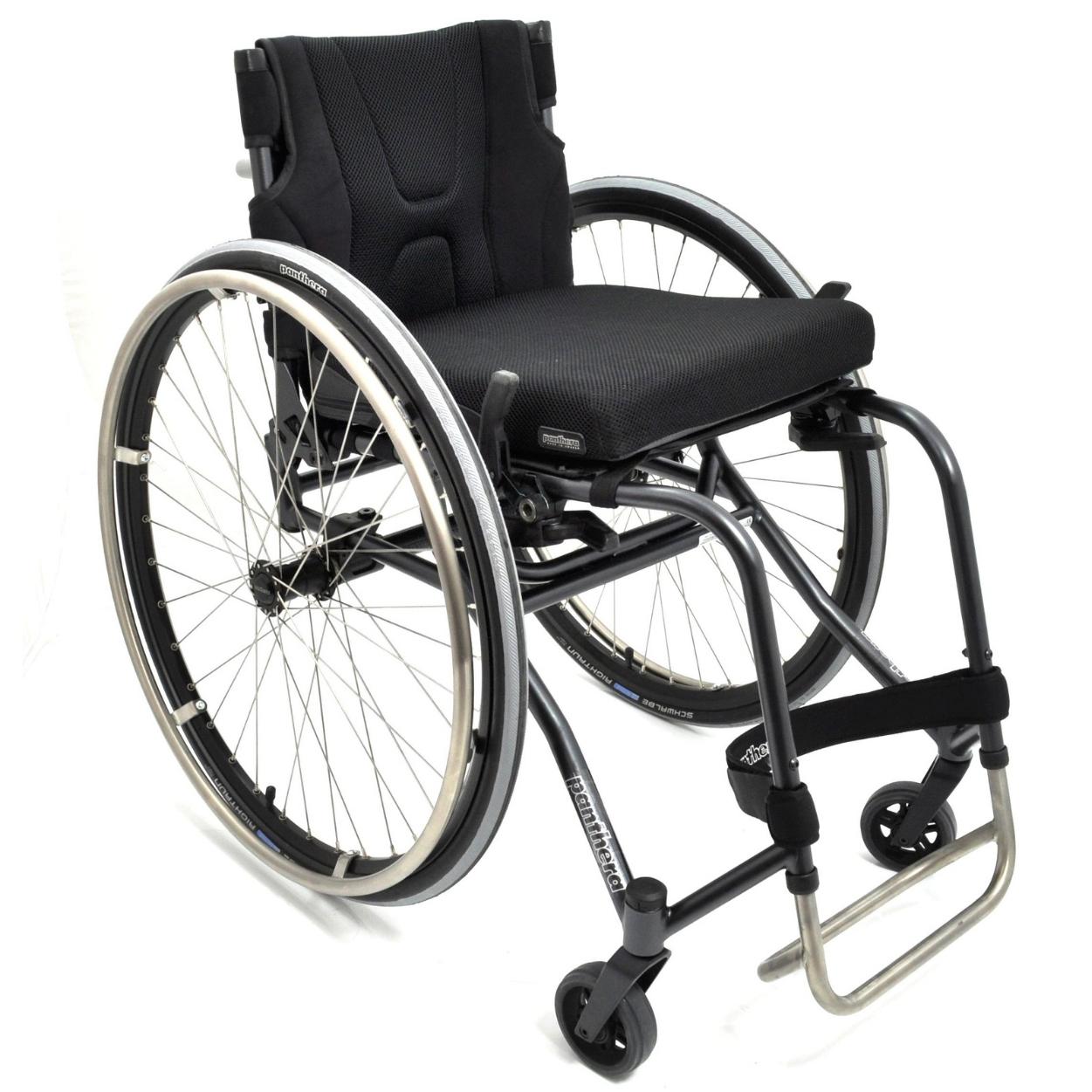

Panthera U3 Series

Panthera U3 Series
Panthera U3 Series - Image 2
Panthera U3 Series - Image 3
Panthera U3 Series - Image 4

Panthera U3 Series

Considered design that lets you live your life your way

Made for active users who want a slim-looking wheelchair and easy maneuverability, combined with adjustable accessories for added comfort and security. The Panthera U3 is a low-weight, adjustable manual wheelchair that offers a feeling of security in an ergonomically optimal driving position.

Built to last
The chassis of the Panthera U3 is made of chrome moly, a material with high strength-to-weight ratio that’s tough and durable. Also used in the automotive and aerospace industries, you can be sure it’s not going to let you down.

request call back
Request Demo
Categories: Adult Manual Wheelchairs, Manual Wheelchairs, Manual Wheelchairs
  • Features
  • Specification U3 - U3 Y Front
  • Specification U3 Y Front Short / U3 Y Front Low
  • Colour Options
  • Brochure

Features

Design in every detail
Attention has been paid to every detail of the Panthera U3 – from its slim, neat profile to adjustable accessories for configuring the adaptations needed for different lifestyles.
Light and strong
The chassis is made from chrome molybdenum (chrome moly steel) tubing to create a low-weight wheelchair that is just 4.7kg. As well as being very easy to maneuver, the stable rigid frame is robust and won’t let you down.
Adjustable
Adjustable features, such as seating angle, back rest and accessories, ensure the Panthera U3 can be adapted to offer the support and comfort needed for everyday activities.
Puts you in control
An integrated anti-tip device can be folded in and out from the seated position, and the side guards have a soft upper section that folds down for support during transferring.
Easy to manage
With its stable rigid frame and uniquely profiled castors that adjust to soft and hard surfaces, the Panthera U3 is robust, easy to maneuver and easy to look after.

Specification U3 - U3 Y Front

U3 U3 Y-front
Seat width 33 – 36 – 39 – 42 – 45 cm 33 – 36 – 39 – 42 – 45 – 50 cm
Seat depth 35 – 46 cm 35 – 46 cm
Seat height Front 47 cm (w. 24” rear wheels) Back 43 cm (w. 24” rear wheels) Front 47 cm (w. 24” rear wheels) Back 43 cm (w. 24” rear wheels)
Seat angle 7° 7°
Total length 84 cm 84 cm
Total width Seat width +21 cm Seat width +21 cm
Front frame angle 100° 100°
Backrest height 20 – 45 cm 20 – 45 cm
Backrest angle 13° – (-8°) 13° – (-8°)
Footplate distance 35 – 43 cm 35 – 43 cm
Camber 2.2°, 4°, 6° (seat width 33 cm)
8° (seat width 33 – 39 cm)
2.2°, 4°, 6° (seat width 33 cm)
8° (seat width 33 – 39 cm)
Weight without rear wheels 4.5 – 5.0 kg 4.5 – 5.4 kg
Wheelchair weight 8.0 – 8.5 kg 8.0 – 9.3 kg
Maximum load 100 kg, 150 kg (seat width 45 cm) 100 kg, 150 kg (seat width 45 – 50 cm)
Material (chassis) Chrome molybdenum tubing Chrome molybdenum tubing
Material (upholstery) Polyurethane covered polyester Polyurethane covered polyester

Specification U3 Y Front Short / U3 Y Front Low

U3 Y Front Short U3 Y-front Low
Seat width 33 – 36 – 39 – 42 – 45 – 50cm 33 – 36 – 39 – 42 – 45 – 50 cm
Seat depth 35 – 46 cm 35 – 46 cm
Seat height Front 47 cm (w. 24” rear wheels) Back 43 cm (w. 24” rear wheels) Front 47 cm (w. 24” rear wheels) Back 43 cm (w. 24” rear wheels)
Seat angle 7° 7°
Total length 79 cm 84 cm
Total width Seat width +21 cm Seat width +21 cm
Front frame angle 100° 100°
Backrest height 20 – 45 cm 20 – 45 cm
Backrest angle 13° – (-8°) 13° – (-8°)
Footplate distance 35 – 43 cm 35 – 43 cm
Camber 2.2°, 4°, 6° (seat width 33 cm)
8° (seat width 33 – 39 cm)
2.2°, 4°, 6° (seat width 33 cm)
8° (seat width 33 – 39 cm)
Weight without rear wheels 4.5 – 5.4 kg 4.4 – 5.3 kg
Wheelchair weight 8.0 – 9.3 kg 8.0 – 9.3 kg
Maximum load 100 kg,150 kg (seat width 45-50cm) 100 kg, 150 kg (seat width 45 – 50 cm)
Material (chassis) Chrome molybdenum tubing Chrome molybdenum tubing
Material (upholstery) Polyurethane covered polyester Polyurethane covered polyester

Colour Options

  • Anodic Black
  • Pearl White
  • Grey Metallic
  • Blue Classic
  • Pine Green

Other colour options available. Please contact your MMS Medical Product Specialsit for more information.
