Design & Features
The operation principle of SB200 is based on the screw self-locking gear. The engine is mounted on the platform itself and rotates a threaded nut, which moves along the stationary screw, this way lifting the platform. The shaft is constructed on the basis of an anodized aluminium frame interconnected with the panels of a client’s choice. Multi-layered sandwich panels and laminated glass panels come as a standard. A maximum of three doors may be installed on each floor with either left or right swing. The doors on the top floor stop may be designed in the form of gates. This type of construction looks aesthetic and modern and gives a clear view of the surroundings. At the request of the client, the platform and panels may be painted in any RAL scale colour. SB200 is a standard colour RAL9006 (white aluminium).
SB200 is designed for a comfortable use by all categories of passengers, including the elderly and people with limited mobility. The SB200 platform lift from MMS Medical fits perfectly in the interior of buildings, and in a variety of external architectural styles. In the case of internal installation the SB 200 has all the essential qualities of a platform lift : minimum overall dimensions no pit and machine room, silent operation and low energy consumption. The SB200 may be installed in libraries, museums, hospitals, schools, airports, railway stations. aboveground or underground passages or parking. Our lifts are widely used in private houses and apartment buildings.
The absence of the lift cabin in SB200 lets us make a spacious and light platform. A standard platform ( 1,485 X 1,070) ensures a comfortable journey for a person in a wheelchair and their attendant if required. The control of the platform is very simple and intuitive. A passenger may stop and resume the movement at any time of the trip and even changes the lifts moving directions. The beginning and ending of the lift process is smooth. A uniformly backlit control panel, with a comfortable handle below. contains large buttons with embossed symbols at a convenient height for access from sitting and standing positions.
The latest LED technology is used in for the lighting of the SB200 as it cost effective, durable and has a wide palette range. These sets of a large number of LED elements provide uniform illumination and an excellent aesthetic appearance. Energy saving LED lighting may stay on for a long time even in case of an emergency power failure. A backup battery installed on the platform may keep a necessary level of lighting for a couple of hours.
Anti-Slip Floor Surface
The platform floor of the SB200 of made from rough anti-skid material, which is highly adhesive and abrasion resistant. The floor coating may contain logos, promotional materials or pictures according to our client needs.
The vertical platform lift the SB200 combines time-tested design solutions and new approaches to electronic control and fault diagnosis. By using the highest quality materials and components, our task is to increase the longevity of the lift and to minimise the downtime associated with trouble shooting and maintenance.
The maximum efficiency of the SB2– is achieved by using lighter materials, power saving lighting technologies and selecting a specific electric drive.
Barduva is continuously improving its vertical screw driven platform in terms of security and reliability indexes. The product reliability is the feature which is beneficial to both consumers and manufacturers. The control system of the SB200 has passed stringent tests o the impact of the strong external electrical interference and received a certificate of electromagnetic compatibility (EMC). The security measures implemented in the SB200, comply with one of the most stringent European standard EN81-41:2010. The SB 200 always stops at an exact indicated position thanks to the triple braking torque system.:
- self-braking torque of a nut and a screw.
- Electromechanical brake inside the motor.
- Electrical brake on the nut, executed by powerful solenoids.
- In case of emergency situations, the lift mechanism is supplied with a manual emergency descent.
|Rated load||Up to 400 kg / 5 persons|
|Speed||0.15 m/sec (9 m/min)|
|Travel height||Up to 13 meters|
|Landings||Up to 6|
|Platform dimensions (length x width, mm)|
*available custom dimensions
|1100 x 1400|
1070 x 1485
1150 x 1485
|Shaft dimensions (length x width, mm)||1500 x 1460|
1460 x 1540
1540 x 1540
|Door clearance (width x height, mm)|
*available other dimensions
|900 x 2000 (with 1100 x 1400 platform)|
940 x 2000
|Gate (length x width, mm)||900 x 1300 (with 1100 x 1400 platform)|
940 x 1300
|Door configuration||Right or left swing, up to 3 doors per landing|
|Shaft walls||Aluminum profiles with glass or steel panels|
*any RAL color available as option
|RAL 9010 (pure white) RAL 9006 (light grey aluminum)|
|Soft start/stop||Comes as a standard|
|Power supply||220-230 V, 1 phase, 25A|
380-400 V 3 phase, 16A, 50 or 60 Hz
|Noise level||Less than 70 dB|
|Control system||Micro computer based|
|Technical safety equipment||Safety edge around the platform, emergency stop buttons inside the platform and in the shaft, emergency stop switches, electronic speed control, overload detectors, opening control of doors and locks, screw amortization sensors, electronic control of engine performance|
|Compatibility with European Standards||EN81-41: 2010|
*For other dimensions, contact your consultant.

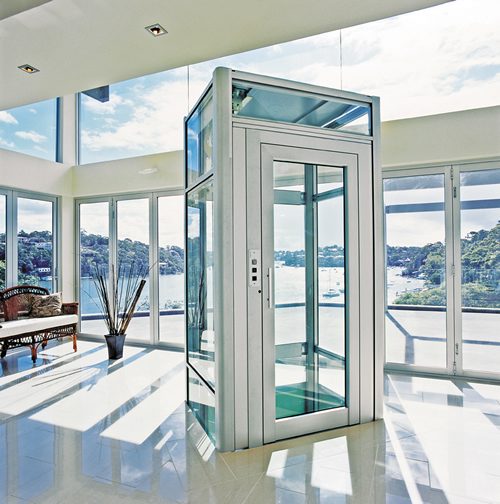

SB 200 Platform Lift – Internal View
