Features
Eliminates 100% of friction
When braking, the handrail remains stationary in relation to the hand. Rubbing and burning are simply eliminated.
– 80% braking effort
The system multiplies braking effort. Dreeft wheels reduce the effort required on the handrail by 80% for braking equivalent to a traditional wheel.
Compatible with motorisation
Dreeft wheels are particularly useful for controlling the 5th rear drive wheels safely, without straining your shoulders on every turn or on slopes
Compatible with motorization
Dreeft wheels are particularly useful for controlling the 5th rear drive wheels safely, without straining your shoulders on every turn or on slopes
– 80% braking effort
The system multiplies braking effort. Dreeft wheels reduce the effort required on the handrail by 80% for braking equivalent to a traditional wheel.
Specification

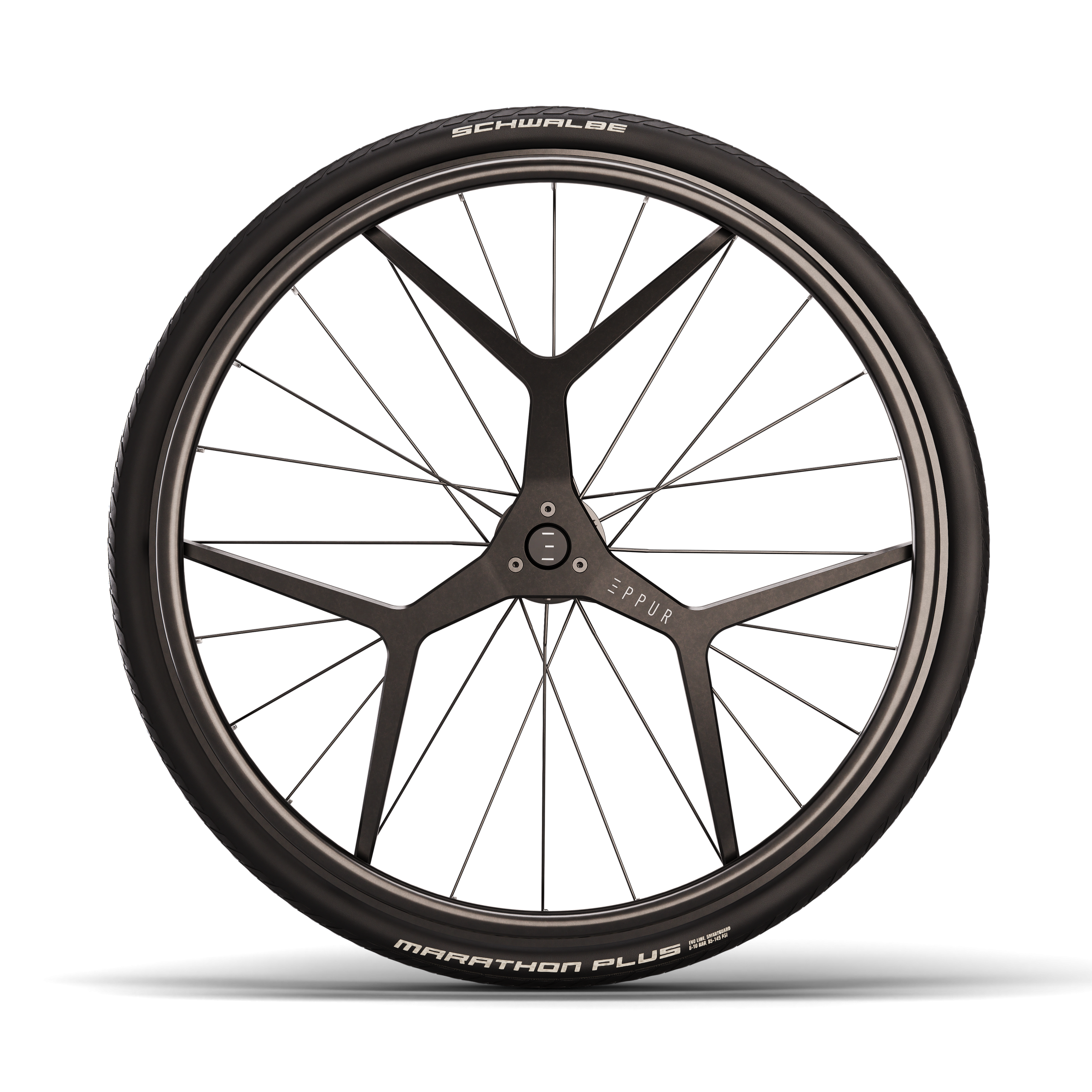

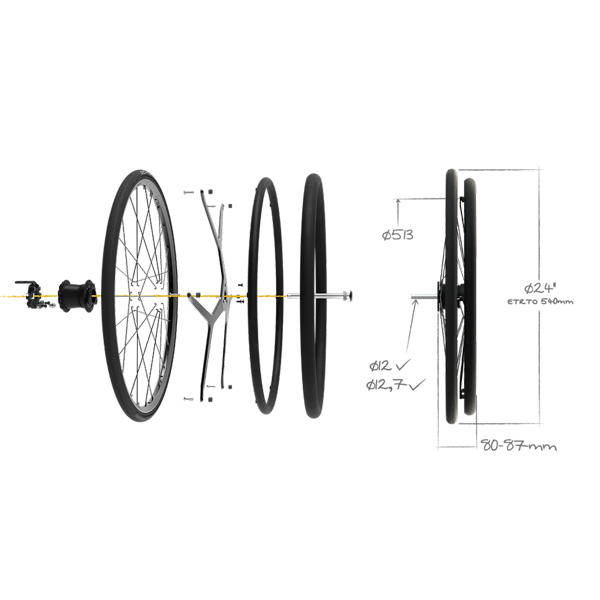

WHEEL DIMENSIONS
24″ (ETRTO 540 mm)
DIAMETER OF HANDRAIL SCREW HOLES
Ø513 mm

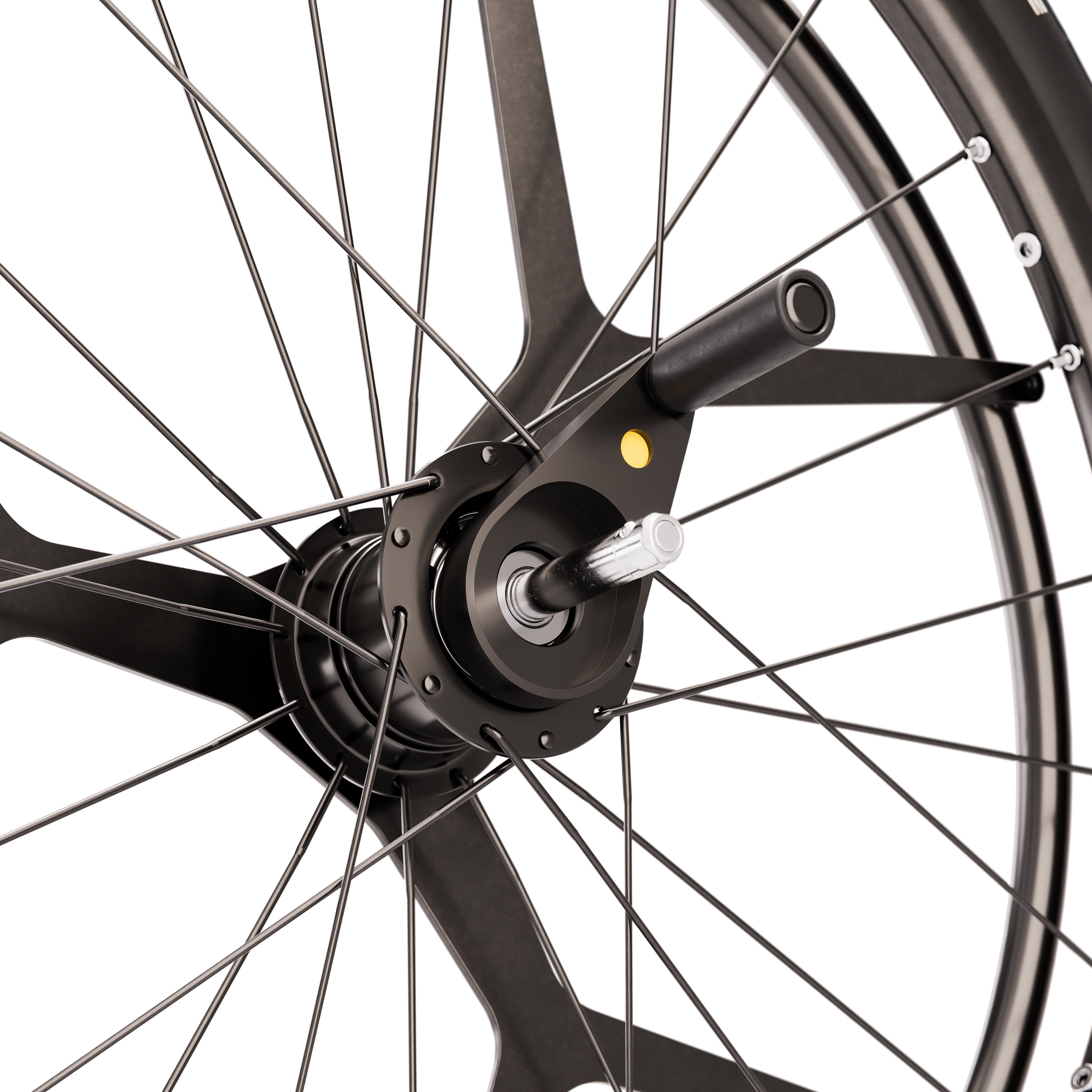

AXIS DIAMETER
12 mm and 12,7 mm compatible
HANDRAIL SPACING
12 mm et 19 mm
MAX USER WEIGHT
120 Kg
WHEEL WEIGHT WITH HANDRAIL
3,013 kg
REMOVABLE GRIP WEIGHT FOR HANDRAIL
650 g
AXIS WEIGHT
Entre 99 et 123,5 g*
Components
SPOKES
24 spokes 14G black stainless steel
TYRE

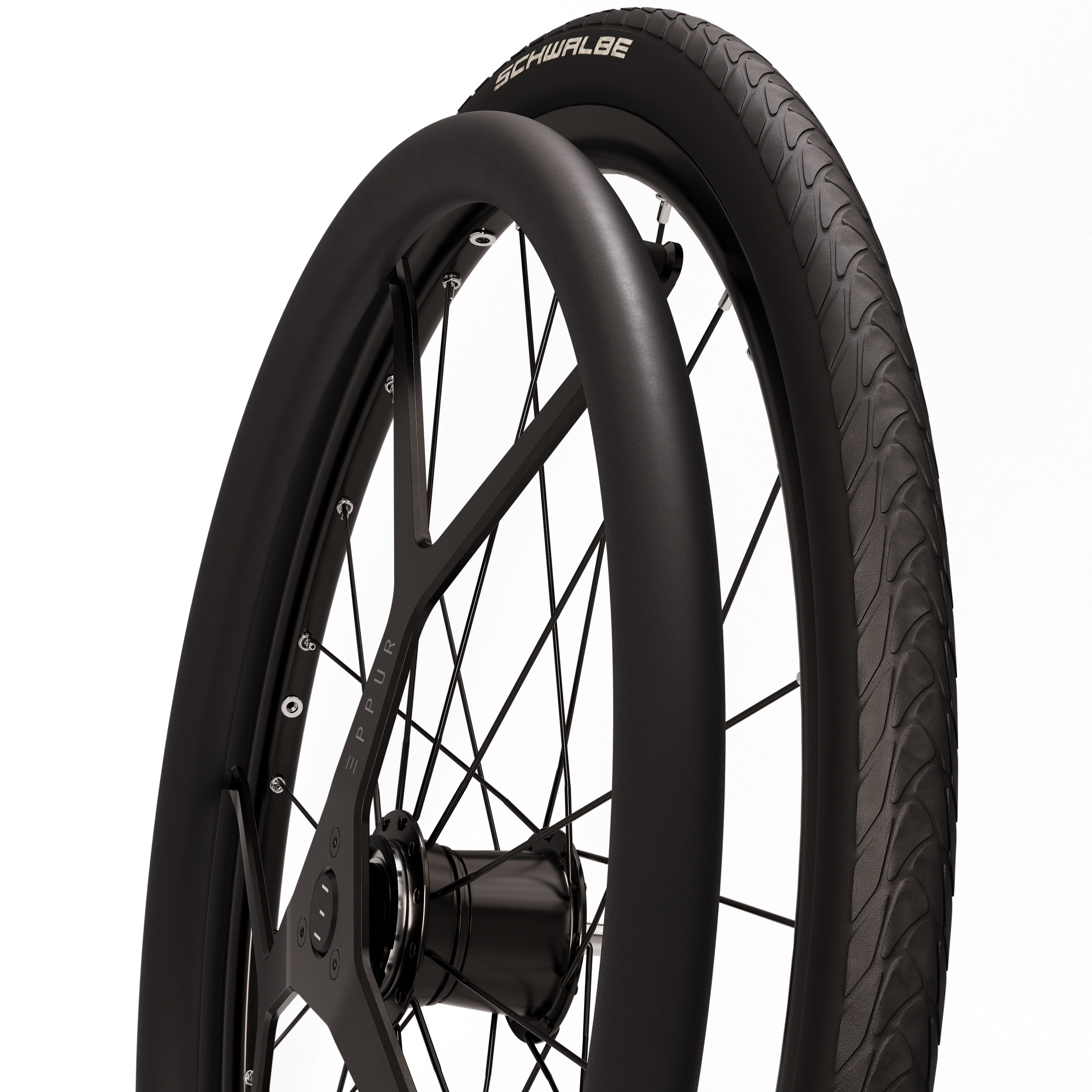

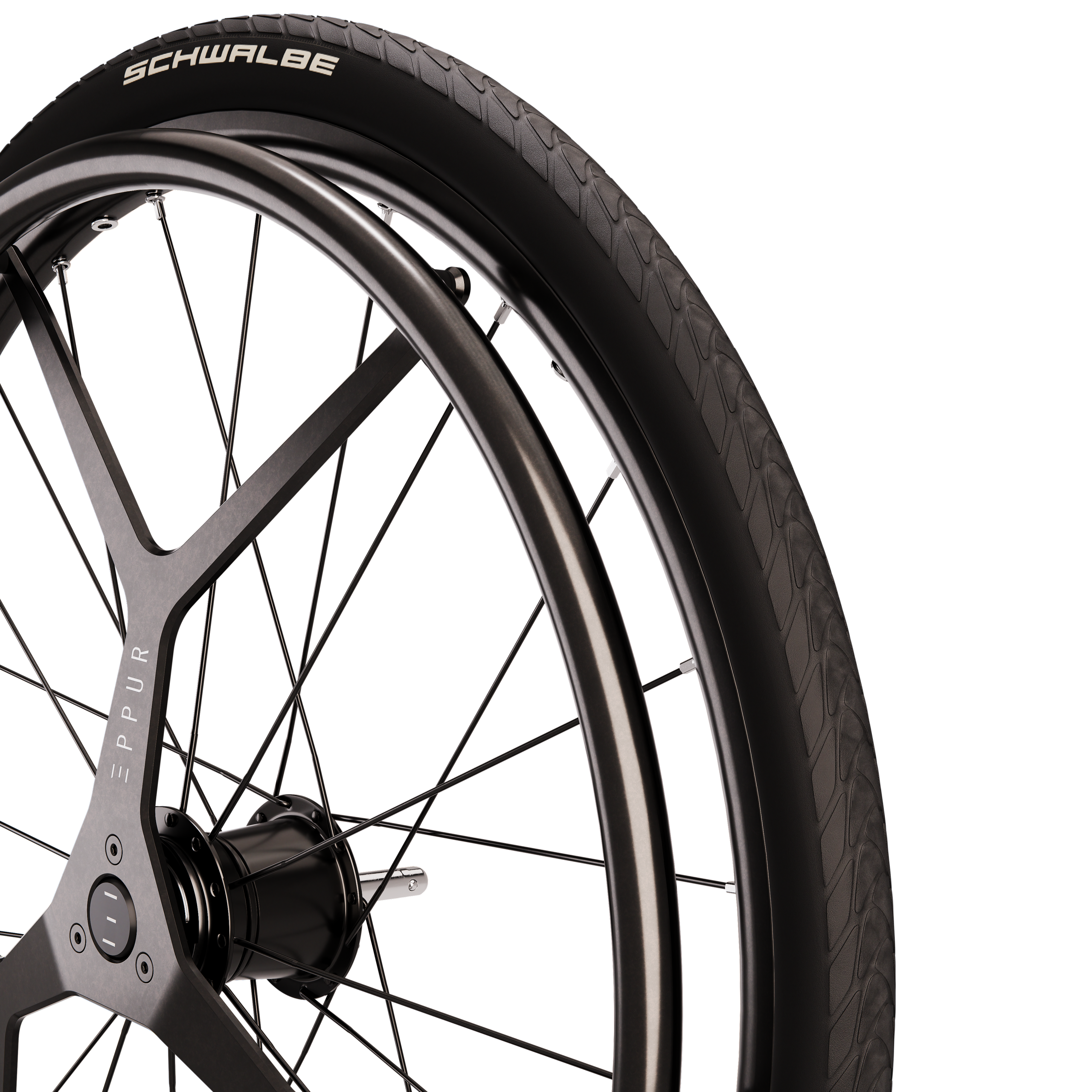

SCHWALBE MARATHON+ 24″
HANDRAIL TYPE
Black anodized aluminum Ø19 mm or Tetra Grip 24″ handrail
RIM TYPE
Double-walled, black powder-coated aluminum
GRIP FOR HANDRAIL
Adhesive grip for MC Ø30 mm or Tetra Grip 24” handrail *
Compatability

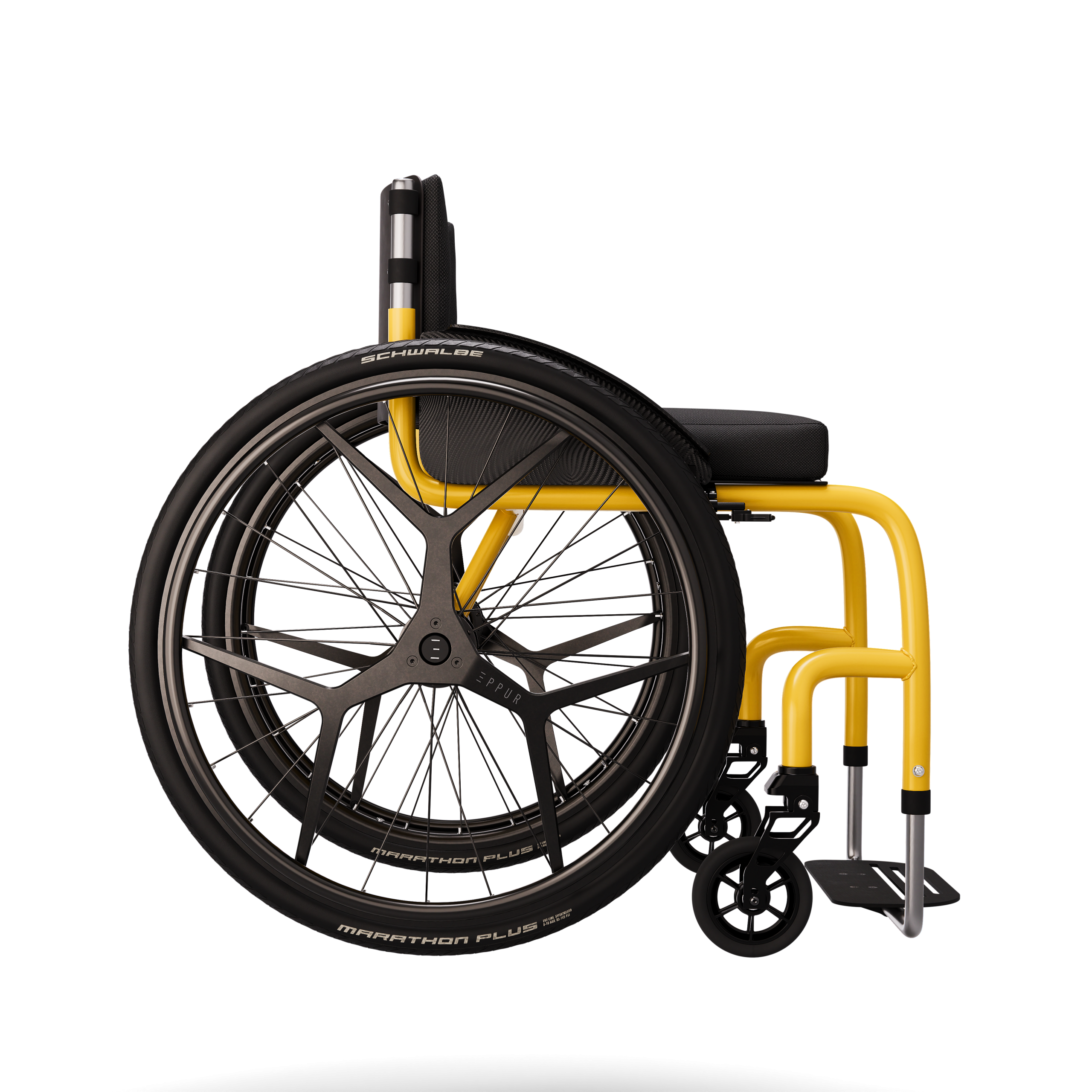

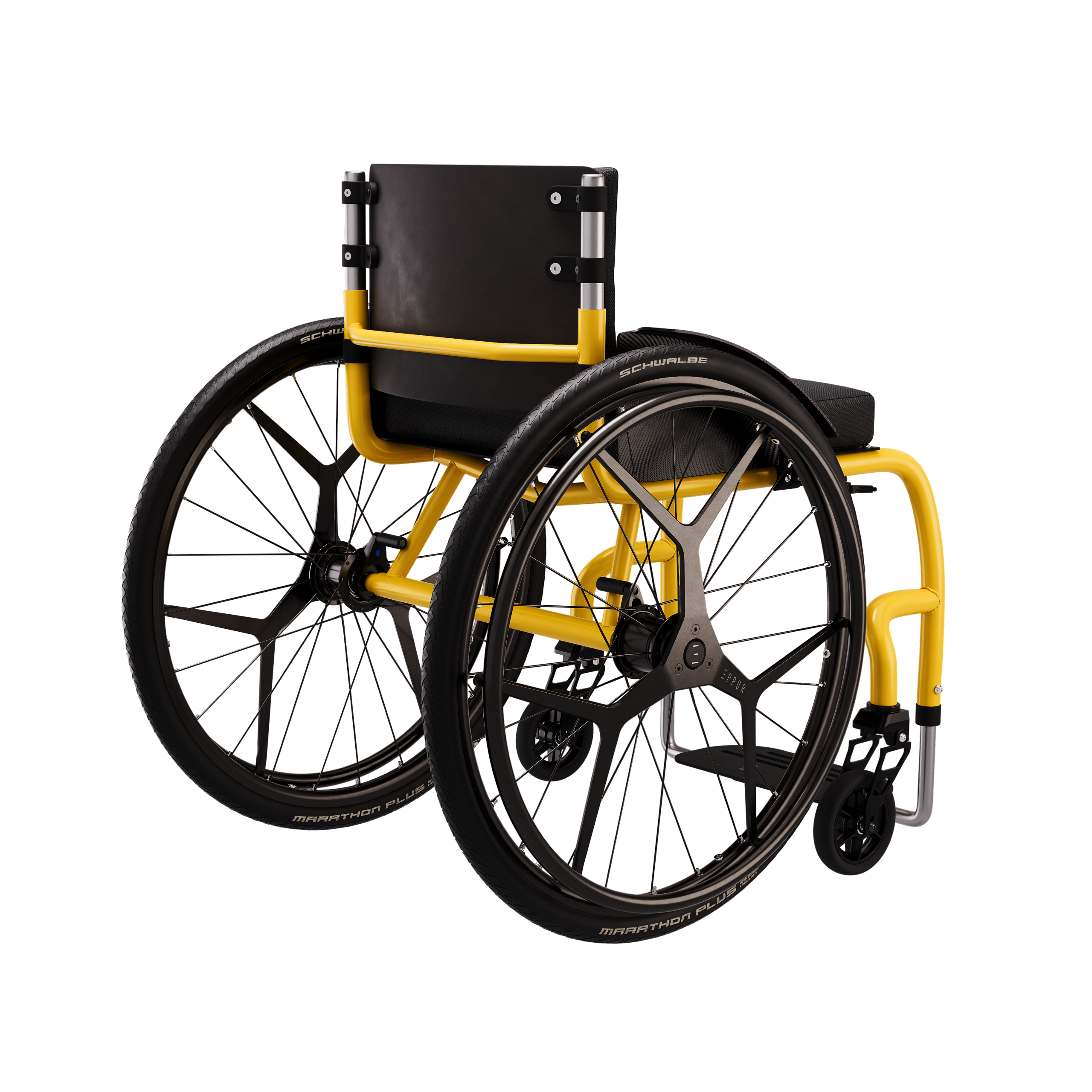

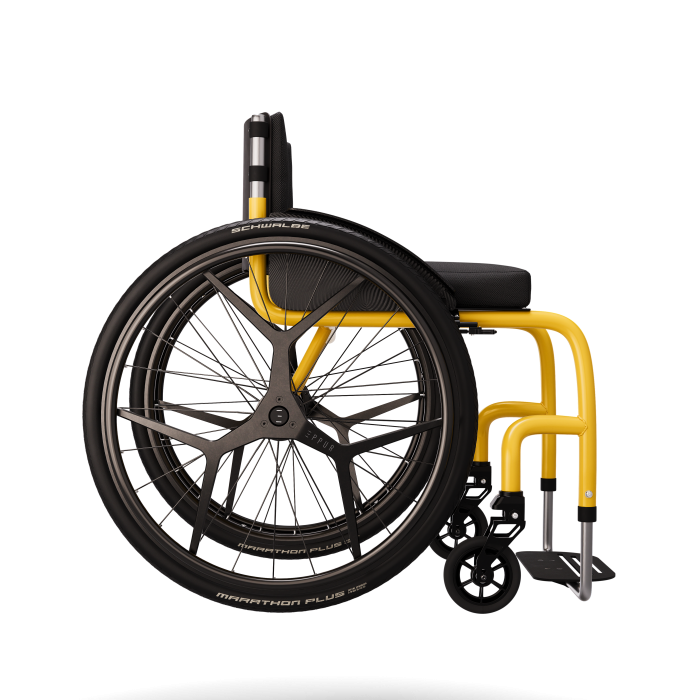

Our wheels are compatible with most manual wheelchairs. The wheels include an adapter system for both 12 mm and 12.7 mm axles. Our adapter system tolerates a wheel camber angle of up to 10 degrees.
Check the wheelchair’s compatibility with Dreeft or Skeed wheels here
DISCLAIMER: Each wheelchair can have thousands of configurations depending on options and year of manufacture.
The information in this table is for reference only and may contain errors.
