The Astor Compact Plus feature packed height adjustable bath with powered seat is an ideal choice giving maximum comfort to the bather and minimal strain and ease of use for the carer. Â

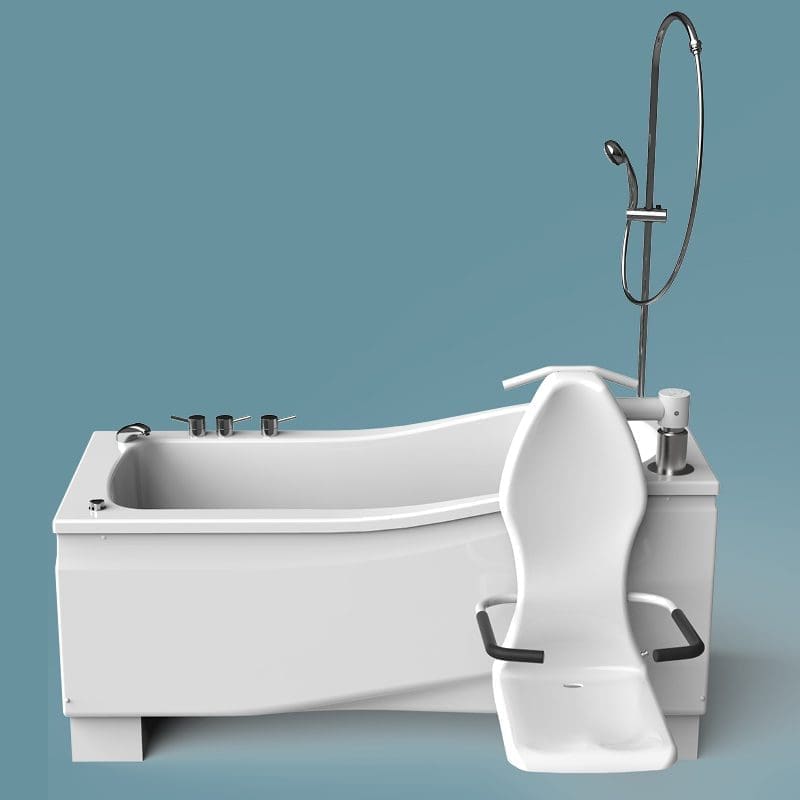

Introducing the Astor Compact Plus, an innovative and feature-rich height-adjustable bath designed for optimal functionality in Care Home environments. This bath is thoughtfully crafted to prioritize the comfort of bathers while minimizing strain for caregivers.
Constructed with precision using a proprietary bearing system, multi-layer GRP panels, twin gel-coated seat, and high-grade 304 stainless steel components, the Astor Compact Plus sets a benchmark for durability and longevity.

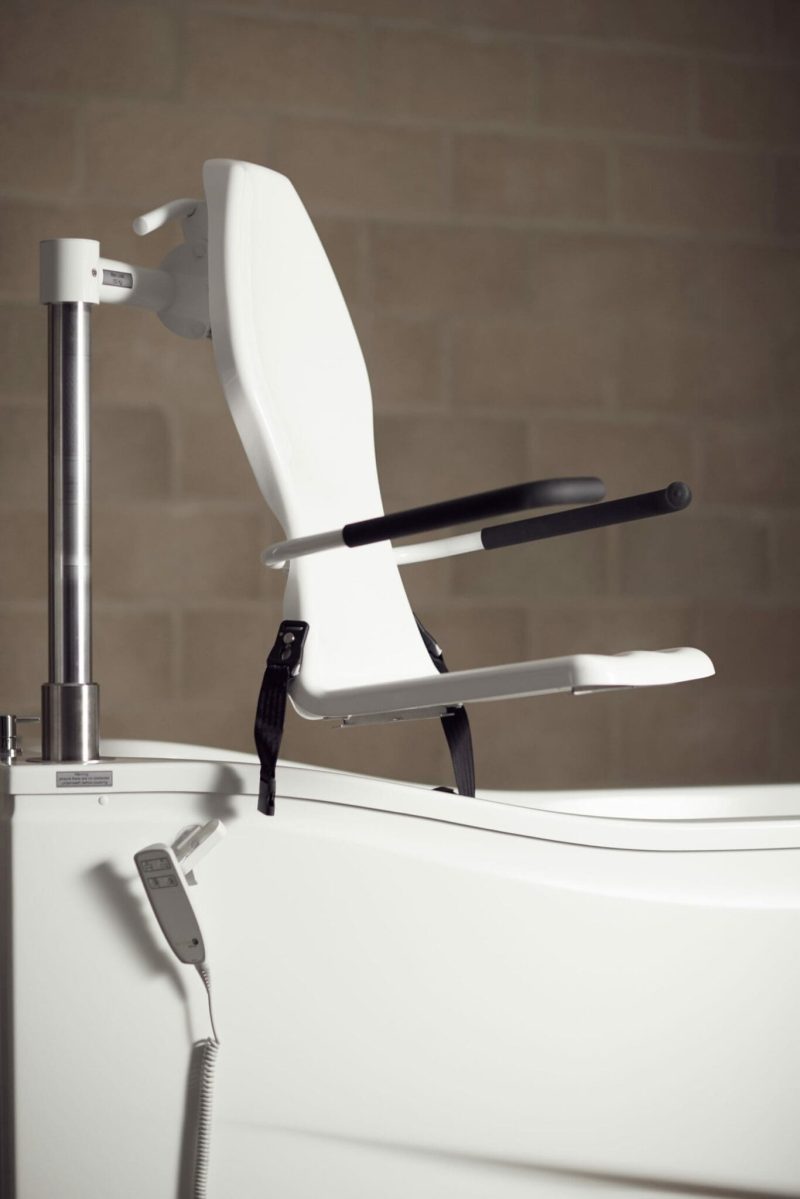

One of its standout features is the integrated powered seat, equipped with a clip and lock lap strap, nursing arms, and an obstacle sensor, ensuring safe and comfortable transfers for bathers. The seat’s design, especially with the optional commode seat, allows optimal access for caregivers. Additionally, a detachable seat option with the possibility of attaching a headrest provides versatility for comfortable bathing when the seat is not in use. For secure and smooth transfers, a transfer trolley is available.
The internal design of the Astor Compact Plus offers bathers a spacious yet supported bathing experience, complemented by smooth lines that facilitate easy cleaning and superior hygiene control.
The Showersafe gantry system, approved by WRAS, provides backflow protection up to fluid category 5 level. It also incorporates TMV3 temperature control for added safety. Furthermore, the bath filler is fitted with a separate TMV3 temperature control, ensuring precise control over water temperature.
Choose the Astor Compact Plus for a cutting-edge, height-adjustable bath that prioritizes both the comfort of bathers and the ease of use for caregivers, setting a new standard in care home bathing solutions.
Dimensions and weights
Length:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1600 mm or 1700 mm
Width:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 750 mm
Width with chair out:Â Â Â Â Â Â Â 1420 mm
Min stroke height:Â Â Â Â Â Â Â Â Â 780 mm
Max stroke height:Â Â Â Â Â Â Â Â 1080 mm
Weight without water 1600:Â approx. 118 kg
Weight without water 1700:Â approx. 133 kg
Filled capacity 1600:Â Â Â Â Â Â approx. 215 l
Filled capacity 1700:Â Â Â Â Â Â approx. 195 l
Seat Maximum Load:Â Â Â Â Â Â max. 150 kg
Max Working Load 1600:Â Â Â 478 kg (product, patient and water)
Max Working Load 1700:Â Â Â 508 kg (product, patient and water)
Electrical Data
Applied Part:Â Â Â Â Â Â Â Â Â Â Â Â Â Type B
Protection Class:Â Â Â Â Â Â Â Â Â Â I
Power connection:Â Â Â Â Â Â Â Â 230 V, 50 Hz
Power consumption:Â Â Â Â Â Â Â Max. 1.25 kW
DC output:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 24V, 8A
Operating Mode:Â Â Â Â Â Â Â Â Â Short-term operation
Duration of treatment:Â Â Â Â Â 10%, max. 2 min on & 18 min off
Noise level:             10 °C to 40 °C
Relative humidity         30% to 95%, non-condensing
Atmospheric pressure:    800 – 1060 hPa
Minimum:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1 bar (cold and hot water connection)
Maximum:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5 bar (cold and hot water connection)
The pressure should be identical for both lines!
Storage and transport
Temperature range:       5 °C to 70 °C
Relative humidity:        10% to 80%, no condensation at 20 °C
Atmospheric pressure:     50kPa – 106 kPa
