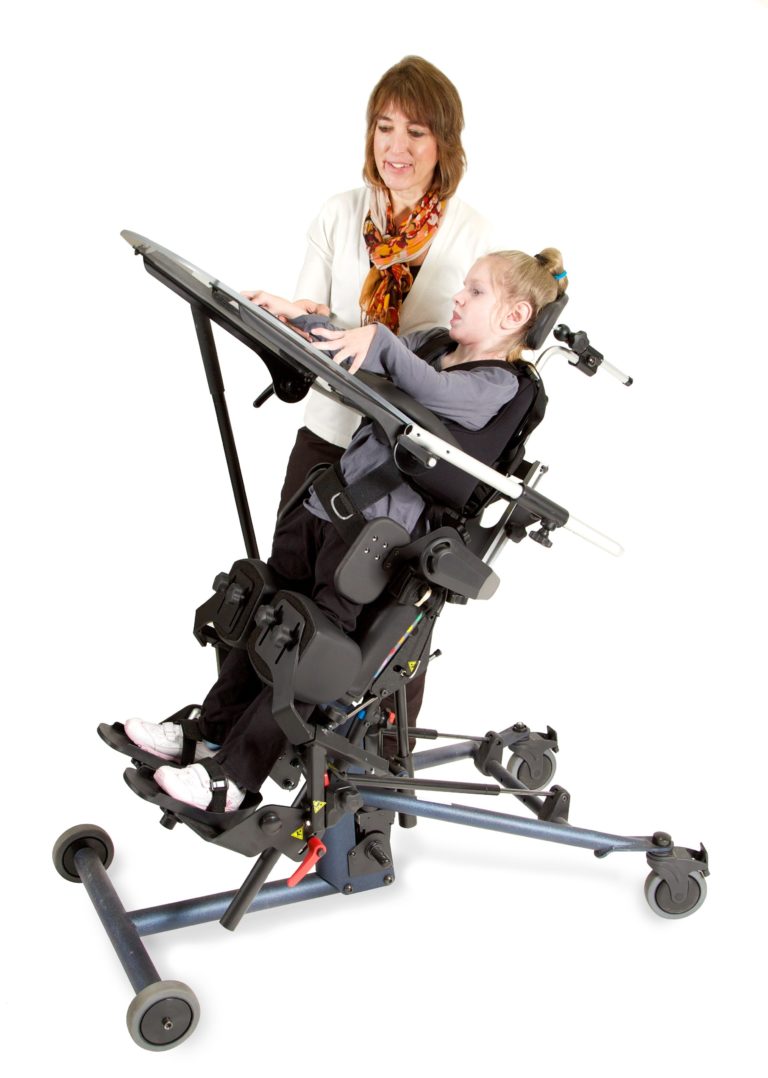

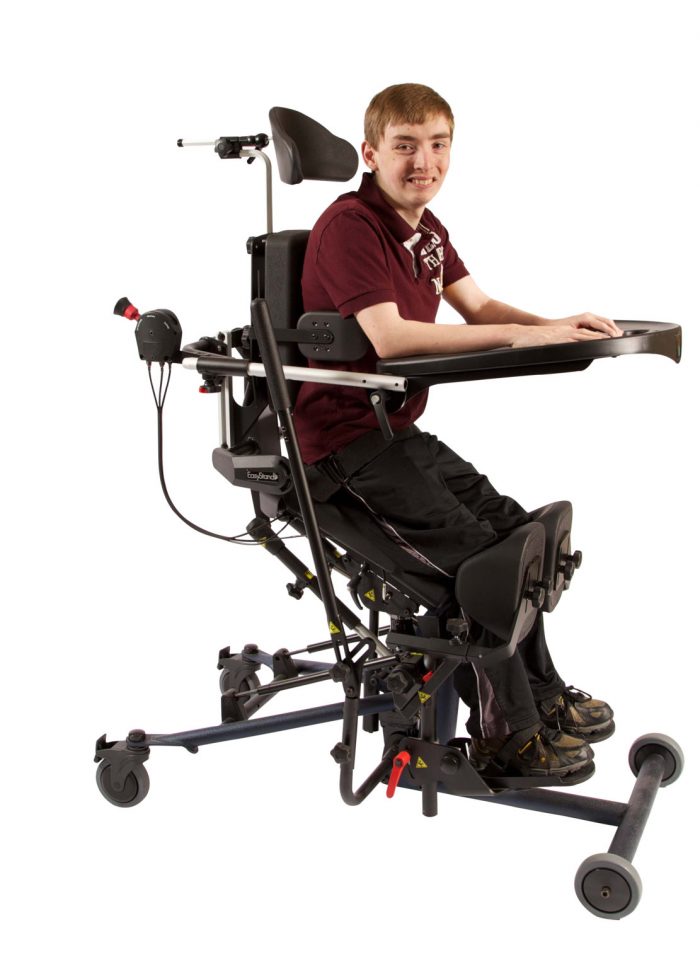

EasyStand Bantham Medium

The EasyStand Bantam Medium combines features from both the Bantam and Evolv series to make it more appropriate for the larger, involved child. As children grow, transfers become more difficult, and as a result, compliance with a standing program often suffers. The Bantam Medium allows transfers to a seated or supine position, or any position in between.
A user can go from sitting to standing independently with the pow’r up option when ordered with supine. Sit to Stand is only one of the many position possibilities. The nucleus of the bantam medium is the central positioning controller which puts you in control of deciding how the unit changes position.

Fits users 4′-5’6” tall and up to 200 lbs.
Seat Depth Range (from seat pivot) 15″-20″

request call back
Request Demo





Category:

Description

The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

Specification

Approximate Height Range 48″-66″ 122-168cm
Weight Limit 200lbs 91kg
Seat Depth Range, Planar (from seat pivot to flat back surface) 15″-20″ 38-51cm
Seat Depth Range, Contour (from seat pivot to flat back surface) 15″-20″ 38-51cm
Seat (Planar) Height From Floor (transfer height) 22″ 56cm
Seat (Contour) Height From Floor (transfer height) 25″ 64cm
Seat to Footplate Range (Planar) 10″-18.5″ 25-47cm
Seat to Footplate Range (Planar) -Inverted Brackets 7″-12.5″ 18-32cm
Kneepad Depth Range (from seat pivot) 3″-8″ 8-20cm
Kneepad Width 8″ 20 cm
Kneepad Dimensions 9″Hx7″W 23x18cm
Back Height From Flat Seat to Top of Back, Short 15″ 38cm
Back Height From Flat Seat to Top of Back, Tall 19″ 48cm
Back Height From Contour Seat to Top of Back, Short 16.5″ 42cm
Back Height From Contour Seat to Top of Back, Tall 20.5″ 52cm
Weight of Basic Unit 108lbs 49kg
Frame Footprint, Standard 24.5″x44.5″ 62x113cm
Upholstery Black Nylon/Neuprene or Molded Urethane
Frame Color Splatter Midnight
Casters & Wheels (diameter) 5″ 13cm
Lifting Mechanism Manual Hydraulic Lift
Seat Pad Size Planar (Width) 15″ 38cm

Shadow Tray

Shadow Tray Size 21″x24″ 53x61cm
Shadow Tray Height (from top of planar seat) 5.5″-11.25″ 14-29cm
Shadow Tray Height (from top of contour seat) 7.25″-12.75″ 18-32cm
Shadow Tray Chest Pad Depth Range (from planar back) 2″-10″ 5-25cm
Shadow Tray Chest Pad Depth Range (from contour back) 3.5″-11.5″ 9-29cm
Weight of Shadow Tray Assembly, Black Molded Tray 10.5lbs 4.8kg
Add for Clear Acrylic Tray 3lbs 1.4kg
Acrylic Tray Size 21″x24″ 53x61cm
Oversized Tray SIze (Swing-Away Tray Front Only) 22″x29″ 56x74cm
Shadow Tray Angle Adjust Range +40° inclines to -90°

Options

Frame Footprint (w/ optional Swivel Casters) 28.25″x47″ 72x119cm
Lifting Mechanism Pow’r Up Lift
Supine Positioning 0-90°
T-Style Handle-Extends (each direction) 7″ 18cm
Adjustable/Removable Actuator Handle Range +/- 15° from neutral
Foot Straps- fits foot height of 3″-6″ 8-15cm
Secure Foot Straps- fits foot height of 3″-6″ 8-15cm
Kneepad Height Range +/- 1.5″ +/- 4cm
Footplate Size Extra Small 7.75″Lx3.25″W 20x9cm
Footplate Size Small 9.75″Lx4″W 25x11cm
Footplate Size Medium 11.75″Lx5″W 30x13cm
Multi-Adjustable Footplates Plantar/Dorsi +/- 20°
Multi-Adjustable Footplates Fore/Aft +/- 0.75″ + extra 1.5″ +/- 2cm + extra 3.8cm
Multi-Adjustable Footplates Rotation 30° left/right
Multi-Adjustable Kneepads Width Range 5″-9″ 13-23cm
Elbow Pad, Cutout Width 9.25″, 11″, or 13″ 24cm, 28cm, or 33cm
Elbow Pad, Overall Width 21.5″ 55cm
Elbow Pad, Extension (back from current table edge) 3.75″ 10cm
Hip Support Pad Size 4″Hx6.25″W 10x16cm
Hip Supports Width Range 9″-15″ 23-38cm
Hip Supports Height Range +/- 1″ +/- 2.5cm
Lateral Support Pad Size 4″Hx6″W 10x15cm
Lateral Supports Width Range 9″-14.5″ 23-37cm
Lateral Supports Height Range (tall back) 11″-20″ 28-51cm
Lateral Supports Height Range (short back) 10″-17″ 25-43cm
Lateral Supports Fore/Aft Adj 3″ 8cm
Seat Pad Size- Contoured Narrow (Width) 11″-13″ 28-33cm
Seat Pad Size- Contoured Wide (Width) 12″-14″ 31-36cm
Back Pad Size Planar (Short) 11.5″Hx11.5″W 29x29cm
Back Pad Size Planar (Tall) 15.5″Hx11.5″W 39x29cm
Back Pad Size Contoured (Short) 10.5″Hx11″W 27x28cm
Back Pad Size Contoured (Tall) 14″Hx12″W 36x31cm
Chest Pad Contoured (Large) 9.5″Hx15″W 24x38cm
Chest Strap (Pad Size) 5″Hx8″W 13x20cm
Chest Vest – X-Style 11”Lx9.5”W 11″Lx9.5″W 28x24cm
Chest Vest – X-Style 14.5”Lx10.5”W 14.5″Lx10.5″W 37x27cm
Chest Vest – Y-Style 17.5”Lx11.5”W 17.5″Lx11.5″W 44x29cm
Chest Vest – Y-Style 20.5″Lx12.5″W 20.5″Lx12.5″W 52x32cm
Head Support Height Range (from seat, short back) 18″-27″ 46-69cm
Head Support Height Range (from seat, tall back) 22″-31″ 56-79cm
Head Support Depth Range (from backrest) -2.5″ to +1.5″ -6cm to +4cm
Head Support-Extra Small 5″Hx8″W 13x20cm
Head Support-Small 6″Hx10″W 15x25cm
Head Support-Large 7″Hx14″W 18x36cm
Positioning Belt- Hip Circumference to 66″ to 168cm
Positioning Belt with Airline Style Buckle- Hip Circumference to 66″ to 168cm
Chest Pad Height Range (from seat pivot) 18.5″-33″ 47-84cm
Tray Height Range (from seat pivot) 13″-29″ 33-74cm
Tray Fore/Aft Range (from seat pivot to standard chest pad) 1″-11″ 2.5-28cm
Frame Footprint (Swing-Away Standard) 27.5″-44″ 70-112 cm
Frame Footprint (Swing-Away Swivel Front) 29.5″x47.5″ 75x121cm

Options

Bases


  • PY5690 EasyStand Bantam Medium Supine Ready Base


  • PY5691 EasyStand Bantam Medium Base

Knee Pads


  • PY5594-1 Slide-In Knee Pads


  • PY5596-1 Swing-Away Knee Pads

Knee Accessories


  • PY5600-1 Roho Knee Pads

Supine


  • PY5688 Supine

Seat Adjustment


  • PY5645 Easy-Adjust Seat Depth

Lift Mechanisms


  • PNG50044 Quad Grip Handle Extension


  • PNG50070 T-Style Handle Extension


  • PY5564 Pow’r Up Lift


  • PY5632 Adjustable/Removable Actuator Handle

Front Casters


  • PY5694 Front Frame


  • PY5695 Front Frame

Shadow Trays


  • PY5604 Black Molded Shadow Tray


  • PY5606 Clear Shadow Tray


  • PY5656 Swing-Away Black Molded Shadow Tray


  • PY5657 Clear Swing-Away Shadow Tray

Tray Accessories


  • PNG30000 Large Contoured Chest Pad


  • PNG30295 Padded Tray Cover


  • PNG50042 Hand Grips


  • PT50156 Elbow Pad – 9.25” Cutout


  • PT50160 Elbow Pad – 11” Cutout


  • PY5582 Elbow Pad – 13” Cutout

Foot Plates and Foot Plate Accessories


  • PT50080 Foot Straps – 10″L


  • PT50082 Secure Foot Straps – 10″L


  • PY5584-1 Height-Adjustable Foot Plates


  • PY5586 Multi-Adjustable Foot Plates


  • PY5636 Foot Straps – 15″L


  • PY5638 Secure Foot Straps – 15″L

Seats and Seat Accessories


  • PY3044 Black Hygienic Seat Cover for PY5572


  • PY3043 Black Hygienic Seat Cover for PY5570


  • PY3042 Black Hygienic Seat Cover for Planar Seat


  • PY5560 Hip Supports


  • PY5572 Contoured Seat – Wide 12”-14”


  • PY5570 Contoured Seat – Narrow 11”-13”

Backs


  • PY5530 Planar Back 16”H


  • PY5532 Planar Back 20”H


  • PY5574 Contoured Back 16”H


  • PY5576 Contoured Back 20”H

Back Accessories


  • PY3040 Black Hygienic Back Cover for PY5532


  • PY3041 Black Hygienic Back Cover for PY5530


  • PY3045 Black Hygienic Back Cover for PY5574


  • PY3046 Black Hygienic Back Cover for PY5576

Positioning and Upper Body Support


  • PNG30318 Non-Stretch X-Style Chest Vest-11″Lx9.5″W


  • PNG30320 Non-Stretch Y-Style Chest Vest-17.5″Lx11.5″W


  • PNG30322 Non-Stretch X-Style Chest Vest-14.5″Lx10.5″W


  • PNG30324 Non-Stretch Y-Style Chest Vest-20.5″Lx12.5″W


  • PY5686 Lateral Supports with Flat Pads-9″-14.5″ Range


  • PA5672 Padded Positioning Strap


  • PNG30021 Y-Style Chest Vest – 20.5″Lx12.5″W


  • PNG30056 X-Style Chest Vest – 14.5″Lx10.5″W


  • PNG30170 X-Style Chest Vest – 11″Lx9.5″W


  • PNG30171 Y-Style Chest Vest – 17.5″Lx11.5″W


  • PY3008 Velcro Positioning Belt


  • PY3014 Positioning Belt with Airline Style Buckle


  • PY5562 Lateral Supports 9″-14.5″ Range


  • PY5620 Chest Strap


  • PY5634 High Mount Chest Vest Bracket


  • PY5658 Lateral Supports with Elbow Stop 9″-14.5″ Range


  • PY5659 Lateral Supports with Elbow Stop and Arm Rest 9″-14.5″ Range


  • PY5660 Elbow Stop with Arm Rest

Head Supports


  • PA5586 Form to Fit Headrest – 5″Hx10″W


  • PY5626 Head Support – 5″Hx8″W


  • PY5628 Head Support – 6″Hx10″W


  • PY5630 Head Support – 7″Hx14″W

Other


  • P80809 Tool Pouch


  • PNG50040 Push Handles


  • PY5643 Seat Angle Locator
