Astor CTE3- Wall mounted Changing Table CP

Astor CTE3- Wall mounted Changing Table CP

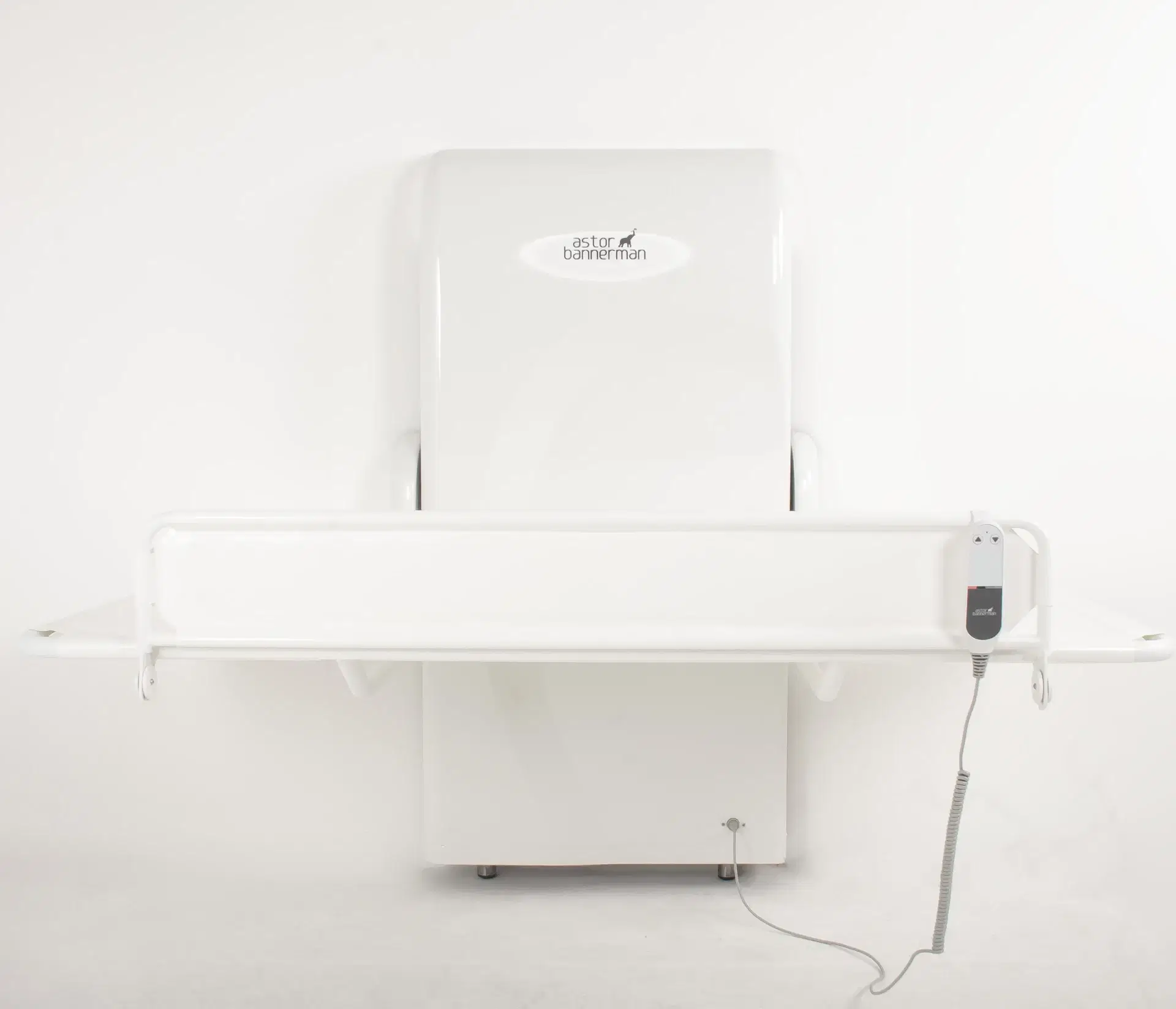

The Astor CTE3-CP wall mounted changing table is simple to operate via a handset control, and is a comfortable, reliable and sleek choice. The durable stretcher material is comfortable as well as quick and easy to clean.  This, along with part stainless steel construction gives many years of worry free use, even in wet and humid or multi-user environments.

The 600 mm travel range enables the user to be gently lifted to a safe and comfortable working height for washing, showering, changing and dressing.  The platform stows neatly when not in use, held in place with twin gas struts, and features battery back-up for safe lowering in the event of a power failure.

The 200 kg maximum working load and  800 mm wide mattress comply with the Changing Places requirement for a Changing Table.

Standard features:

  • Changing Places Compliant
  • Height adjustable to give safe and comfortable carer working height
  • Suitable for use in shower areas
  • Durable non-rip high tension vinyl stretcher – comfortable and easy to clean
  • 200 kg maximum working load
  • 800 mm wide stretcher

Description

Astor CTE3- Walll mounted Changing Table CP

  • Changing Places Compliant Wall Mounted Changing Table
  • Simple design with full compliance and easy installation
  • Height adjustable with hammock stretcher and foldaway guard
  • Suitable for a shower environment with stretcher drainage and stainless steel frame

Specification

Maximum patient weight: 135Kg standard Version. 200 Kg uprated version.
Duty cycle: 10%, Maximum 2 min/18 min
IP Rating: IP X4
Supply voltage: 110V or230V ac
Power: 1.25KW
Dry weights:

Lifting spine: 38.5 kG.
1700mm high tension stretcher: 18.5 Kg
1700mm high tension stretcher with back rest and guard: 20.2 Kg
1700mm Padded bed: 32.5 Kg

A weighted sound emission: <70dB(A)

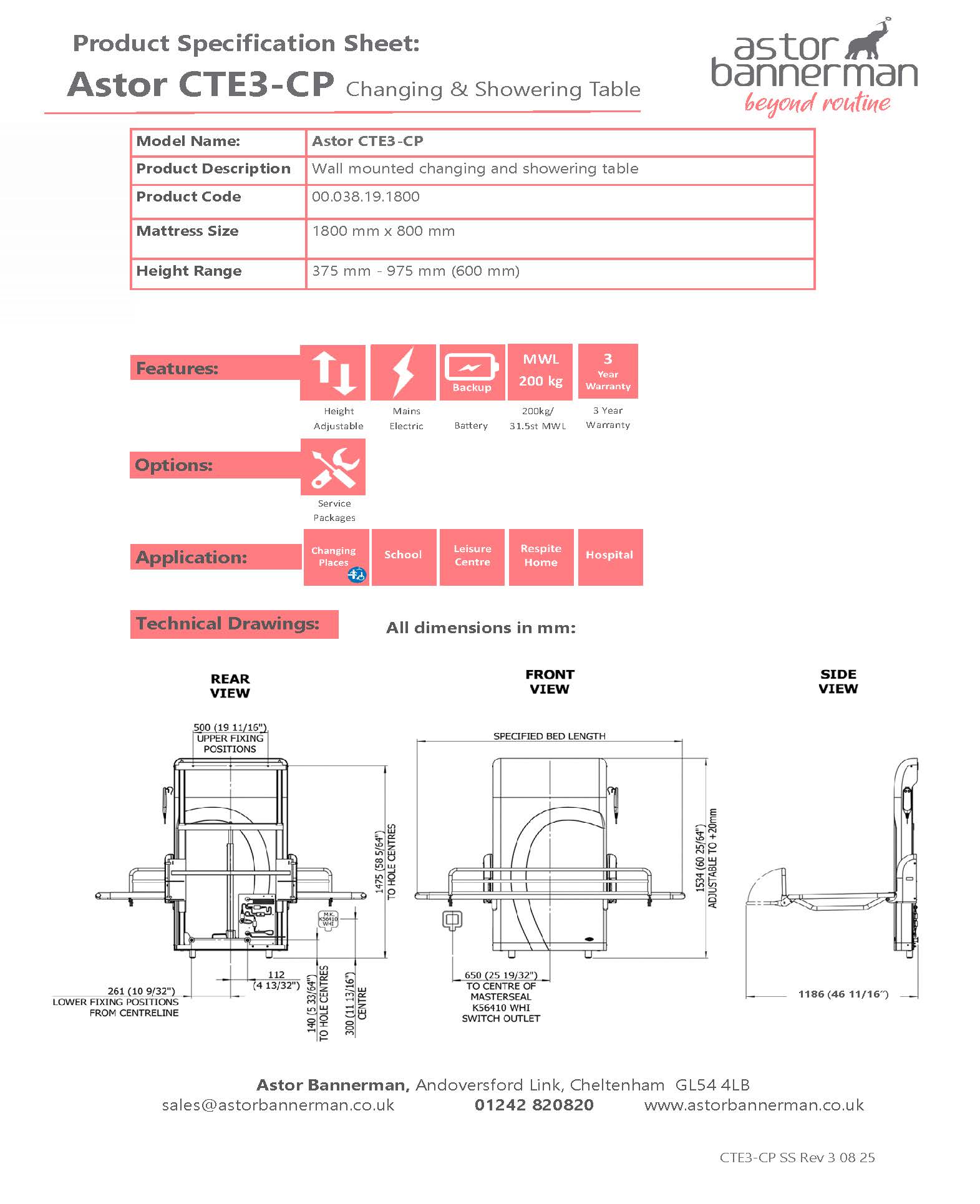

Brochure
